Sale!

400 Aluminum Bare Block

Original price was: $7,548.66.Current price is: $6,963.64.

  • 400 main aluminum bare race block
  • Splayed 4-bolt steel mains
  • 4.117″ rough bore; 4.135″ max bore
  • Tested to over 800 HP



Shipping is free, but we need to know if a liftgate is required for delivery.

SKU: 10134400 Categories: , ,

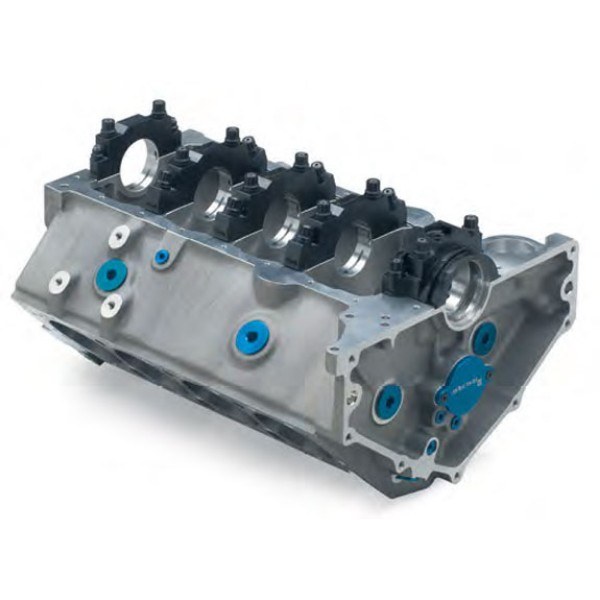

400 Aluminum Bare Race Block

P/N 10134400

– A-356 aluminum competition block
– CNC-machined
– Siamesed bores with increased wall thickness
– 4.117″ rough-finished bore
– 4.135″ maximum bore
– 4.125″ maximum stroke
– Splayed 4-bolt steel mains
– 400 main size
– Dry sump use only
– Tested to more than 800 horsepower!

Brand

400 Aluminum Bare Race Block

10134400 Chevrolet Cylinder Block

Less weight and the same great horsepower are the benefits of a Chevrolet Performance Aluminum Race Block. Chevrolet Performance Aluminum Race Blocks provide the same competition-level strength and reliability of our cast-iron Race Blocks, but their lighter weight improves chassis dynamics. The super-tough A-356 aluminum competition blocks are CNC-machined to +/- 0.005-inch tolerances. Chevrolet Performance Aluminum Race Blocks are ideal for competition applications or high horsepower turbocharged engines.

Race Block Technical Notes:

ﾕ Extra-thick deck surface with blind-tapped head bolt holes for improved head gasket sealing
ﾕ Centrifugally spun cast-iron cylinder sleeves
ﾕ 2-piece rear-main crankshafts and pre-1986 oil pans required
ﾕ Enlarged cam bosses allow machining for larger cam bearings
ﾕ 2.000″ O.D. (1.867″ I.D.) cam bearings P/N 12370843 required
ﾕ Blocks may require clearancing at top of lifter bores (0.842″) for some roller lifters
ﾕ Timing system clearance should be checked before engine assembly
ﾕ Extra-thick main bearing bulkhead machined at 5ﾰ
ﾕ Premium main studs and steel main bearing caps
ﾕ Priority main oiling system
ﾕ Billet wet sump rear main cap can be converted to dry sump with plugs
ﾕ Oil dipstick holes not drilled
ﾕ Comes with dowel pins

Note: Proposed applications have not been specifically tested or validated by Chevrolet Performance.
