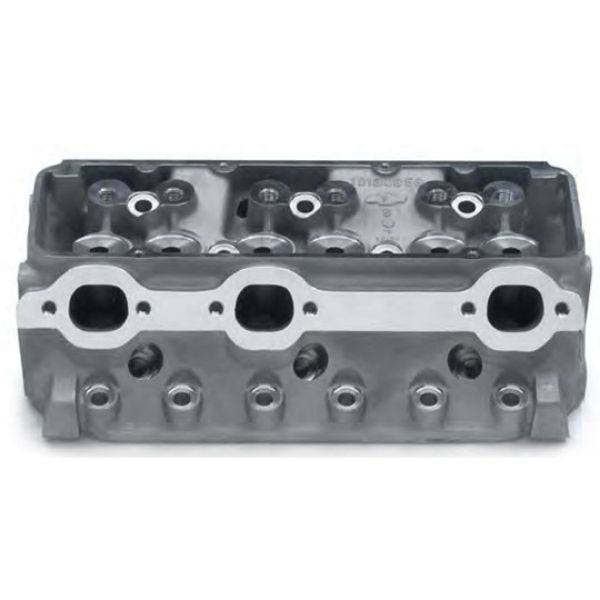

18° Aluminum Cylinder Head
Original price was: $788.84.$787.08Current price is: $787.08.
Oversized item - add to cart to calculate shipping.
‘- Low-port 18° aluminum cylinder head for maximum-effort competition engines
– Offers significant improvements over conventional head designs with 18° valve angles (vs. older 23° angles) and 43cc combustion chambers
– Spark plug holes are centrally located and valve centerlines are relocated
– Exhaust ports are high-flow
– Head face has an extra 0.080″ of material for 9.1:1 compression, and up to 2.200″ intake valves can be used
– Shallow wedge-shaped combustion chambers allow builders to achieve high compression ratios with small piston domes
– Heads do not include valve seats or guides
– Aftermarket shaft-mounted rocker arm assemblies and pushrods are required
– Piston domes and valve pockets must be matched to the revised combustion chamber design.
V-6 90° Cylinder Head Quick Reference Chart
Description: 18° V-6
Casting Number: 12480009
Material: Aluminum
Port Size: 215
Port Type: Raised
Valve Spring; 18°
Chamber CC’s; 43
Int Vlv: 2.150″
Exh Vlv: 1.620″
Plug Type: Angled
Heat Riser: No
Rocker Stud: Shaft
Notes: As cast ports
Out of stock
18° Aluminum Cylinder Head
– Low-port 18° aluminum cylinder head for maximum-effort competition engines
– Offers significant improvements over conventional head designs with 18° valve angles (vs. older 23° angles) and 43cc combustion chambers
– Spark plug holes are centrally located and valve centerlines are relocated
– Exhaust ports are high-flow
– Head face has an extra 0.080″ of material for 9.1:1 compression, and up to 2.200″ intake valves can be used
– Shallow wedge-shaped combustion chambers allow builders to achieve high compression ratios with small piston domes
– Heads do not include valve seats or guides
– Aftermarket shaft-mounted rocker arm assemblies and pushrods are required
– Piston domes and valve pockets must be matched to the revised combustion chamber design.
V-6 90° Cylinder Head Quick Reference Chart
Description: 18° V-6
Casting Number: 12480009
Material: Aluminum
Port Size: 215
Port Type: Raised
Valve Spring; 18°
Chamber CC’s; 43
Int Vlv: 2.150″
Exh Vlv: 1.620″
Plug Type: Angled
Heat Riser: No
Rocker Stud: Shaft
Notes: As cast ports
