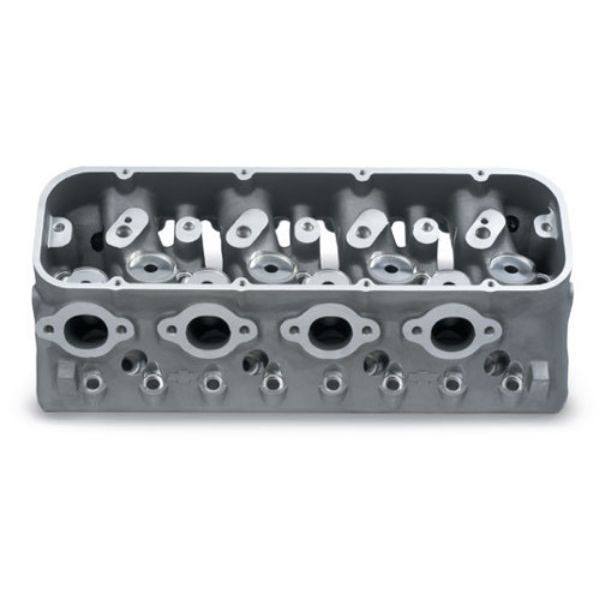

Rough-Machined Splayed-Valve Aluminum Cylinder Head
Original price was: $1,807.49.$1,667.41Current price is: $1,667.41.
- Extremely aggressive, all-out competition head
- Main surfaces are machined, exhaust bolt pattern is machined
- Head bolt and dowel holes, intake bolt holes, spark plug holes and pushrod holes are not machined
- Valve guides, valve seats, valve spring seats and rocker stands are not machined
Rough-Machined Splayed Valve Aluminum Cylinder Head
P/N 12480146
– Main surfaces are machined, exhaust bolt pattern is machined
– Head bolt and dowel holes, intake bolt holes, spark plug holes and pushrod holes are not machined
– Valve guides, valve seats, valve spring seats and rocker stands are not machined
– Valve locations and angles may be relocated
– 240cc “as-cast” intake ports
– 78cc “as-cast” exhaust ports
– 45cc “as-cast” combustion chambers
Aluminum Splayed Valve Race Head Technical Notes:
– Made of 355-T7 aluminum
– No valve seats or guides provided
– Extra-thick decks for angle milling or heavy flat milling
– Extra port material (0.240″) for professional porting
– Completely revised intake and exhaust ports provide ultimate airflow potential
– 45cc “as-cast” combustion chambers
– Modified valve angles (16° x 4° intake, and 11° x 4° exhaust)
– Designed for longer-than-stock 2.200″ and 1.650″ valves
– Valve spring pads accommodate 1.625″ diameter springs
– Revised location angled spark plugs (14mm, 5/8″ hex, 3/4″ reach, gasketed plugs)
– Designed for aftermarket shaft-mount rocker systems
– Custom-fabricated intake manifold required
– P/N 10185042 intake manifold gasket required
– Valve cover gaskets P/N 10185043 required
| Brand |
|---|
Splayed-Valve Aluminum Cylinder Head
12480146 Chevrolet Cylinder Head
Rough Machined
Chevrolet Performance Splayed Valve Aluminum Race Cylinder Heads are extremely aggressive, all-out competition heads and not intended for street use. Splayed valves point both intake and exhaust valves at the center of the cylinder bore. As the valves open, they move away from the edges of the bore. That allows maximum-size valves to be installed without increasing bore size. The result is dramatically increased airflow, compared to inline-valve-design cylinder heads.
GM engineers have designed the castings to have a 0.240-inch minimum port wall thickness, which leaves ample room for extensive custom porting. Intake valves are angled 16-degrees to the deck surface and splayed 4-degrees. Exhaust valve angles are 11-degrees with a 4-degree splay. Making more than 1000 naturally aspirated horsepower with these cylinder heads is easily achievable.
