Tall Deck Cast-Iron Bowtie Race Block

Tall Deck Bowtie Race Block

If you’re looking to build a drag racing engine capable of producing 1,200 horses or more, a Chevrolet Performance cast iron Bowtie Race Block is your starting point. It is designed for engine builders who want to custom-machine their blocks for specific racing applications. Toward that end, these premium castings have thick deck surfaces, improved oiling, improved coolant flow and splayed 4-bolt steel bearing caps. Everything is secured with premium fasteners. The combination of a Chevrolet Performance cast iron Bowtie Race Block and your unique engine building skills will put you down the track ahead of the competition.

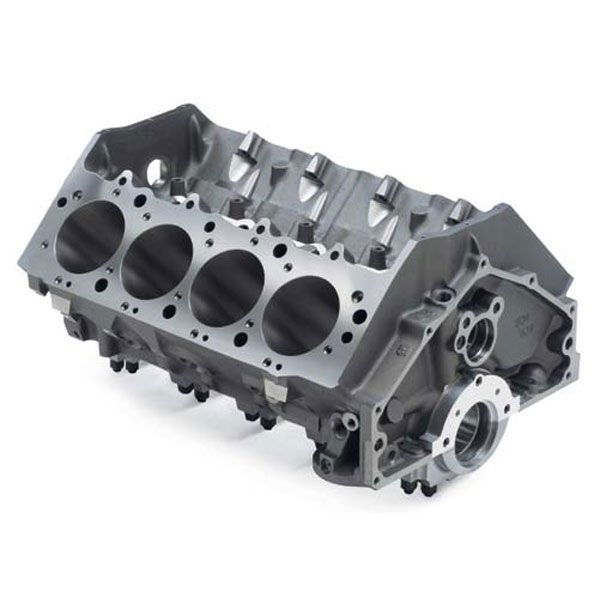

19212197 Chevrolet Bowtie Race Block

• CNC-machined cast iron 4-bolt block
• 4.240” finished bore
• 4.600″ max bore (.250″ min wall thickness)
• Tall deck height (10.200″)
• Lifter bosses are .300″ taller than standard blocks
• Tested to 1,200 horsepower!

Cast-Iron Bowtie Race Block Technical Notes:

• Precision CNC-machining means +/- 0.001″ tolerances
• Blocks are available in short deck (9.800″) or tall deck (10.200″)
• A sonic bore check data sheet is provided with each block
• Siamese cylinder bores
• Improved cooling around number-1 cylinder
• Accepts Mark IV or Gen V, VI cylinder heads
• Use Gen V head gaskets with Mark IV and Gen V cylinder heads
• Use Gen VI head gaskets with Gen VI cylinder heads
• Requires Mark IV design 2-piece rear main seal oil pans
• Requires Mark IV design crankshafts
• Can use Mark IV and Gen V, VI camshafts, timing sets, lifters and timing cover (aftermarket belt drive timing covers may require clearancing)
• Blind-tapped head bolt holes; extra inner head bolt bosses provided
• 4-bolt SAE 8620 main caps splayed 16° on the three center mains
• Priority main oiling wet-sump system
• Provisions for dry-sump oil line provided
• Honed camshaft and crankshaft bores
• 0.842″ lifter bores (maximum 1.06″) may be relocated
• Distributor gear clearance at bottom of number-8 cylinder bore should be checked
• Machined mechanical fuel pump pad
