LSX-LS7 Cylinder Head Assembly, As-Cast

LSX-LS7 Cylinder Head Assembly, As Cast

LSX Cylinder Heads

Extending the performance range of the LSX platform are Chevrolet Performance 6-bolt LSX cylinder heads. Many are capable of flowing more than 400 cfm and their 6-bolts-per-cylinder clamping design gives them bomb-proof strength. Your horsepower-building potential is nearly unlimited with LSX heads.

These aluminum masterpieces of performance feature port and chamber designs based on popular and performance-proven production-style heads, such as the LS3/L92 and LS7 heads. They are easily identified by the engraved LSX logo on the ends.

All LSX heads are made of 356-T6 aluminum and feature a 5/8″ thick deck that allows plenty of room for builder-specified combinations.

Additional features include:

• Uses 11mm (10) and 8mm (13) head bolts (not included)
• Accommodates production valvetrain components (except for Drag Race and Circle Track heads)
• Includes premium beehive-type valve springs (except for Drag Race and Circle Track heads)
• Extra material cast in the port areas to accommodate professional porting
• Valve guides for 8mm valve stems, except DR & CT Racing-specific LSX-DR (Drag Racing) and LSX-CT (Circle-Track) heads feature raised runner designs and other unique features designed to maximize performance at the track.

Racing-specific LSX-DR (Drag Racing) and LSX-CT (Circle-Track) heads feature raised runner designs and other unique features designed to maximize performance at the track.

LSX Street Heads

Four LSX street head configurations are offered: The LSX-LS7 head, the LSX-LS3 head, the LSX-LS9 head and the LSX-L92 Small Bore head. The LSX-L92 head features smaller combustion chambers that are compatible with smaller-bore LS1 and LS6 engines. The street heads accommodate valve springs with up to 1.37″ diameter bases, but can be machined for larger springs.

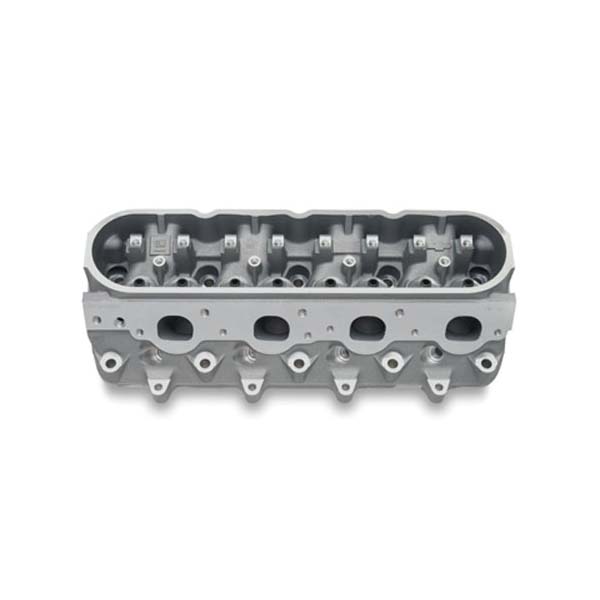

19328843 Chevrolet Cylinder Head

• 6-bolt per cylinder bolt pattern
• LS7 style rectangle port design
• Assembled with 2.200″ titanium intake and 1.610″ sodium-filled exhaust valves
• 12° valve angle
• Minimum 4.100″ bore
• 270cc “as-cast” intake ports, 85cc “as-cast” exhaust ports
• 70cc “as-cast” combustion chambers
• Handles .650″ list with premium springs
• Uses LS7 rocker arms/LS7 bolts
