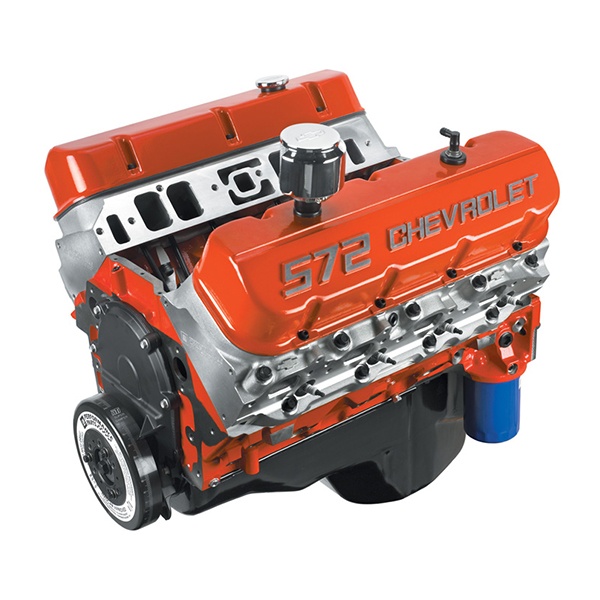

Chevrolet Performance ZZ572/620 Base Crate Engine-19331581

ZZ752/620 Base Crate Engine

P/N 19331581

ZZ752/620 Base Technical Specs:

Part Number: 19331581
Engine Type: Chevy Big-Block V-8
Displacement (cu in): 502
Bore x Stroke (in): 4.470 x 4.000
Block (P/N 19170540): Cast-iron with 4-bolt main caps
Crankshaft (P/N 10183723): Forged steel
Connecting Rods (P/N 19170198): Forged steel, shot peened
Pistons (P/N 12533507): Forged aluminum
Camshaft Type (P/N 12366543): Hydraulic roller
Camshaft Lift (in): .527 intake / .544 exhaust
Camshaft Duration (@.050 in): 224° intake / 234° exhaust
Cylinder Heads (P/N 12363390): Aluminum oval port; 110cc chambers
Valve Size (in): 2.250 intake / 1.880 exhaust; stainless steel
Compression Ratio: 9.6:1
Rocker Arms (P/N 12675724): Stamped steel
Rocker Arm Ratio: 1.7:1
Distributor (P/N 1104060): HEI type
Throttle Body (P/N 17113524): Included
Water Pump (P/N 19168602): Aluminum, short-style
Flexplate (P/N 10185034): 14″
Recommended Fuel: Premium pump
Ignition Timing: 35° Total at 4,000 rpm
Maximum Recommended rpm: 5,800
Balanced: External

Installation Notes:

– Requires a 12-volt power source (and ground), coolant, exhaust system, fuel feed and fuel return line (to the fuel tank). An in-tank fuel pump is recommended
– Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
– Designed for pre-1976 street vehicles or any off-road vehicle
– Not intended for marine applications

– IMPORTANT! For a safe, proper and trouble-free engine break-in, the MEFI 4 computer has a “green” mode that controls rpm during the break-in period. During this period, engine speed is limited to 4,000 rpm in the first hour, 4,500 rpm in the second hour and 5,500 rpm in the third hour

Supersedes old GM P/N 12498792
