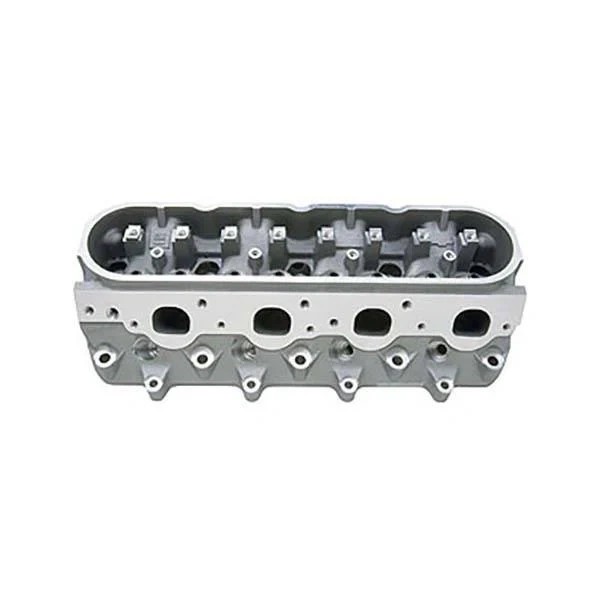

LSX-LS7 CNC-Ported Cylinder Head Assembly

Original price was: $2,355.21.Current price is: $2,172.68.

  • LS7 style rectangle port design
  • Fully CNC ported
  • Uses P/N 19257879 bare head
  • Minimum 4.100″ bore



SKU: 19354241 Categories: ,

LSX-LS7 CNC-Ported Cylinder Head

P/N 19419197

– Fully CNC Ported
– 6-bolt-per-cylinder bolt pattern
– LS7 style rectangle port design
– Assembled with 2.200″ titanium intake and 1.610″ sodium-filled exhaust valves
– 12° valve angle; minimum 4.100″ bore
– 70cc “as-cast” combustion chambers
– Handles .650″ lift with premium springs
– Uses LS7 rocker arms/LS7 bolts
– Uses P/N 19257879 bare head
– 397 cfm@0.700″ intake, 230 cfm@0.700″ exhaust

Brand

Replaces/Supersedes

19329962, 19354241

LSX-LS7 CNC-Ported Cylinder Head

19354241 Chevrolet Cylinder Head

LS7 Rectangle Port Configuration

LSX Cylinder Heads

Extending the performance range of the LSX platform are Chevrolet Performance 6-bolt LSX cylinder heads. Many are capable of flowing more than 400 cfm and their 6-bolts-per-cylinder clamping design gives them bomb-proof strength. Your horsepower-building potential is nearly unlimited with LSX heads.

These aluminum masterpieces of performance feature port and chamber designs based on popular and performance-proven production-style heads, such as the LS3/L92 and LS7 heads. They are easily identified by the engraved LSX logo on the ends.

All LSX heads are made of 356-T6 aluminum and feature a 5/8″ thick deck that allows plenty of room for builder-specified combinations.

Additional features include:

  • Uses 11mm (10) and 8mm (13) head bolts (not included)
  • Accommodates production valvetrain components (except for Drag Race and Circle Track heads)
  • Includes premium beehive-type valve springs (except for Drag Race and Circle Track heads)
  • Extra material cast in the port areas to accommodate professional porting
  • Valve guides for 8mm valve stems, except DR & CT Racing-specific LSX-DR (Drag Racing) and LSX-CT (Circle-Track) heads feature raised runner designs and other unique features designed to maximize performance at the track.

Racing-specific LSX-DR (Drag Racing) and LSX-CT (Circle-Track) heads feature raised runner designs and other unique features designed to maximize performance at the track.

LSX Street Heads

Four LSX street head configurations are offered: The LSX-LS7 head, the LSX-LS3 head, the LSX-LS9 head and the LSX-L92 Small Bore head. The LSX-L92 head features smaller combustion chambers that are compatible with smaller-bore LS1 and LS6 engines. The street heads accommodate valve springs with up to 1.37″ diameter bases, but can be machined for larger springs.
