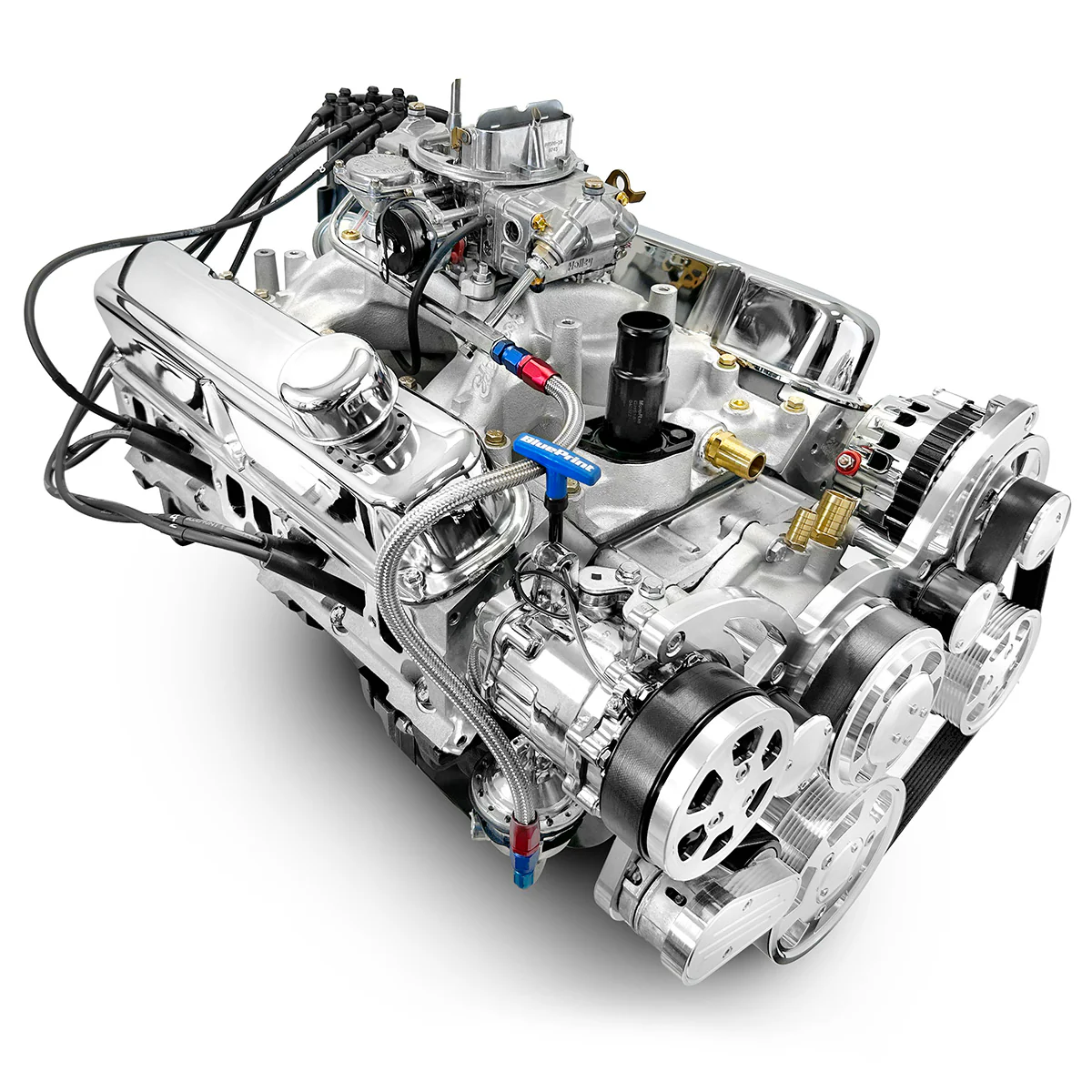

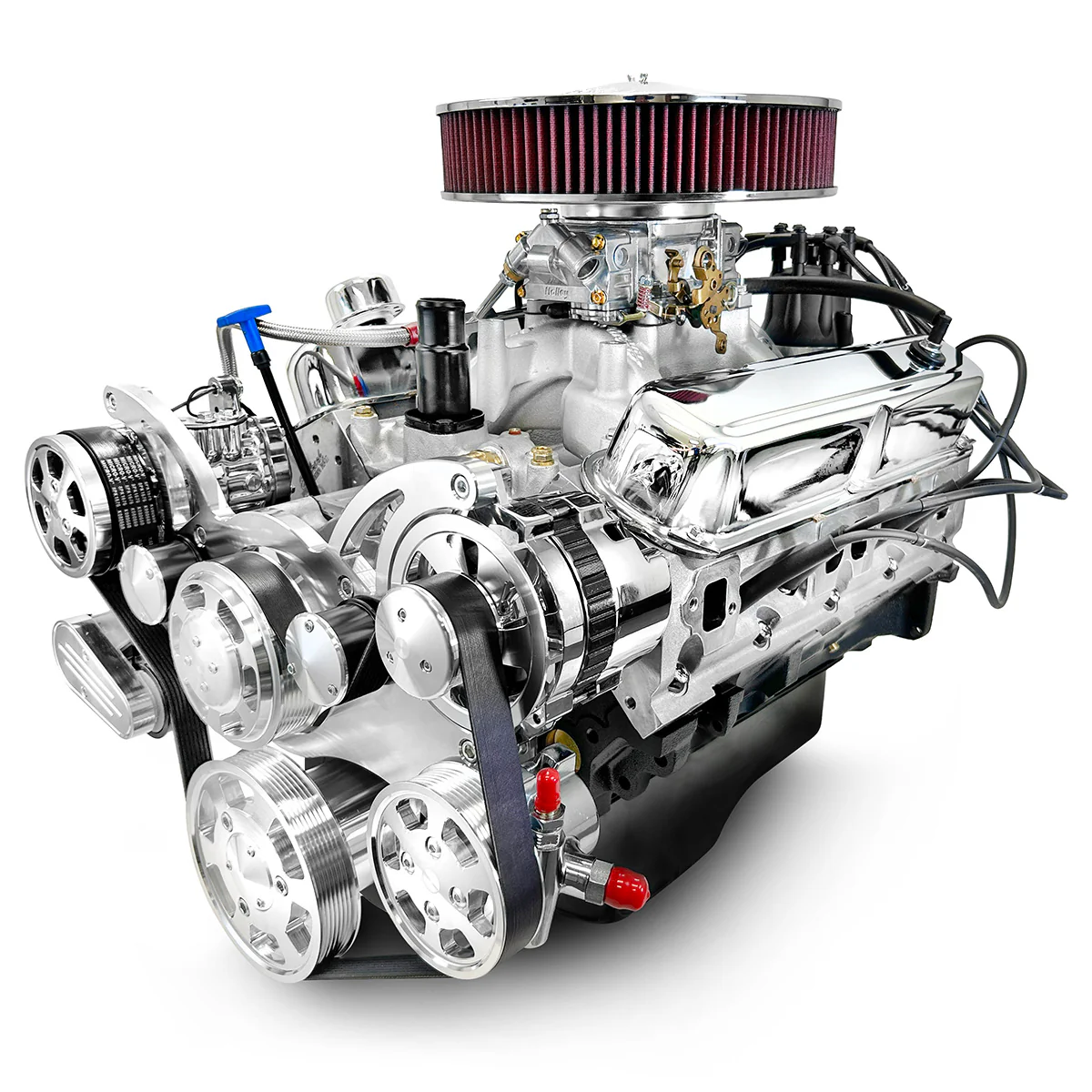

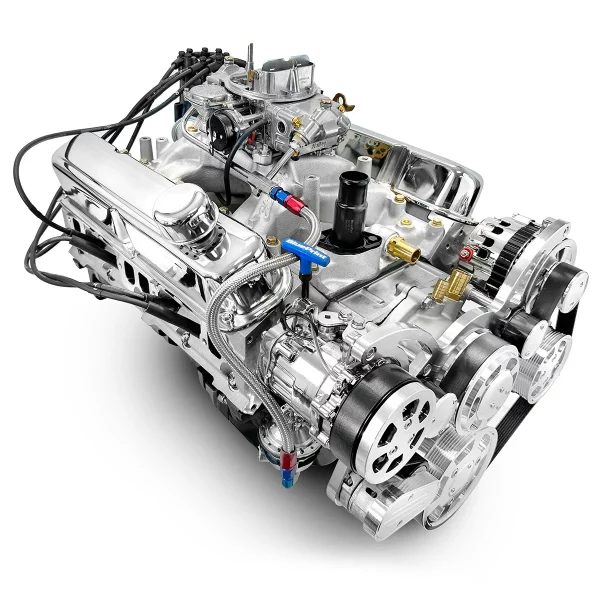

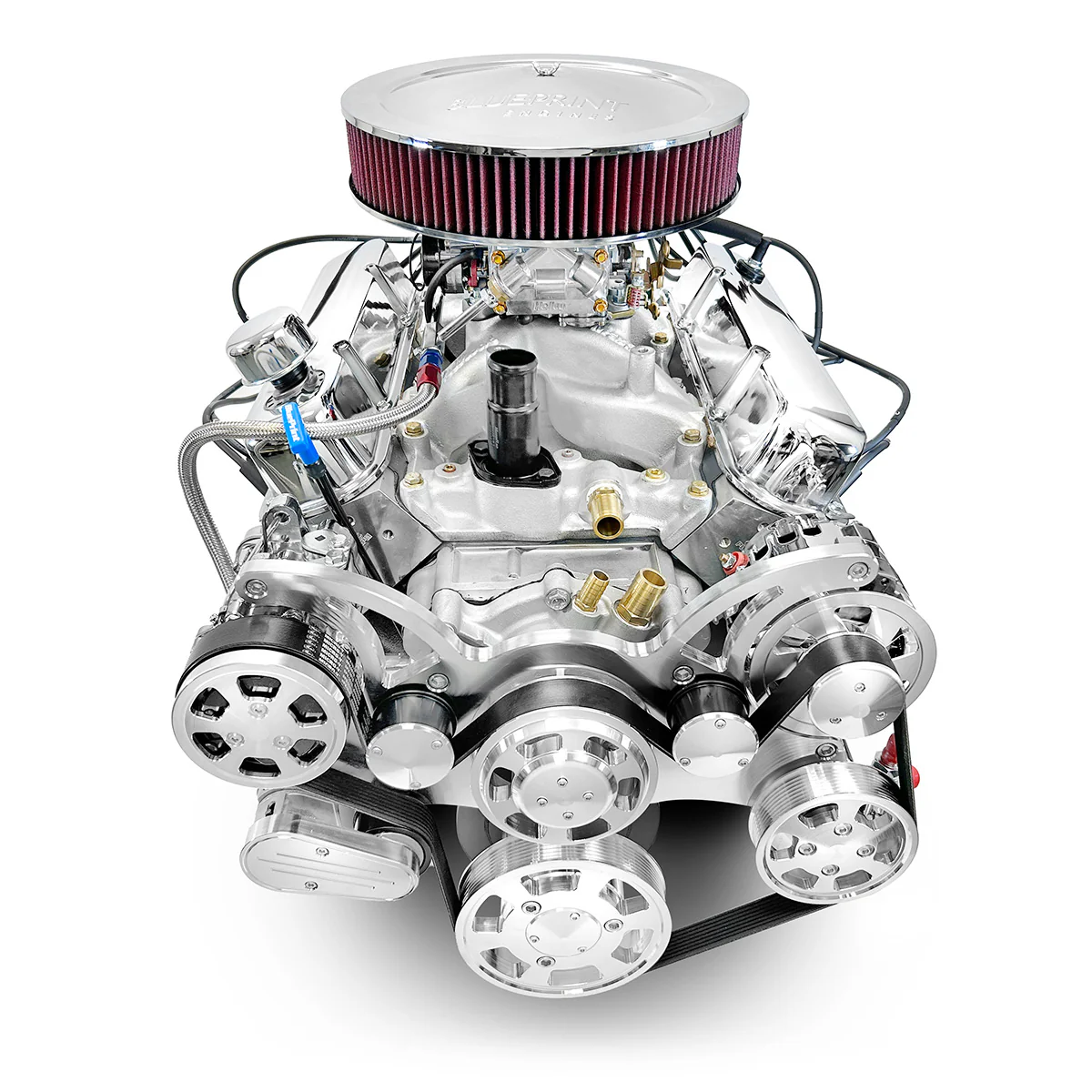

Chrysler SB Compatible 408 c.i. Engine – 465 HP – Deluxe Dressed with Polished Pulley Kit – Carbureted

$11,149.00

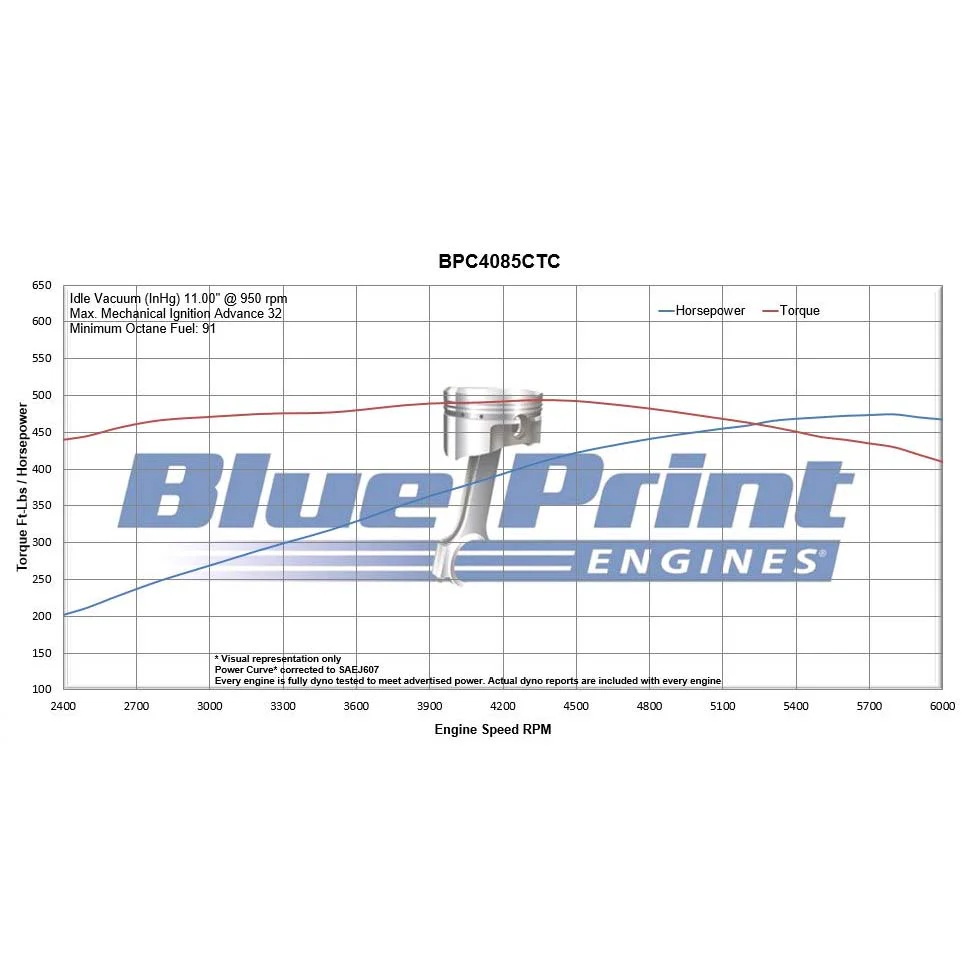

HP & Torque: 465 HP / 494 FT. LBS

Cylinder Heads: BluePrint Engines Assembled, Edelbrock Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller – .544 Intake / .541 Exhaust Lift and 236 Intake / 242 Exhaust Duration @ .050 – 110° LSA

Pistons: Forged

Crankshaft: Steel Crank – 4.000″ Stroke and Forged 6.123″ Rods

Shipping is free, but we need to know if a liftgate is required for delivery.

SKU: BPEBPC4085CTCK Categories: ,

Description:

  • HP & Torque: 465 HP / 494 FT LBS
  • Compression Ratio: 10:1
  • Aluminum Heads
  • Roller Cam
  • Steel Crank
  • Forged Pistons

Block:

  • Hand-picked seasoned Magnum block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer-controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 2-Bolt Main
  • 4.000″ Bored .040″ over
  • 2-Piece Rear Main Seal
  • Mech fuel pump provision: Yes

Rotating Assembly:

  • New Steel crankshaft
  • 4.000″ Stroke
  • Forged Magnum 6.123″ connecting rods w/ 150,000 psi bolts
  • Forged pistons
  • External

Cylinder Heads:

  • BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
  • Aluminum Magnum Pattern Cylinder Heads – 58cc chamber
  • Aluminum Roller Rockers
  • 2.02″ intake/1.60″ exhaust valves
  • 176cc intake/75cc exhaust runners

Cam Specs:

  • Cam Type: Roller
  • .544 Intake .541 Exhaust
  • 236 Intake / 242 Exhaust duration
  • @ .050 – 110-degree lobe separation

Ignition Timing:

  • 34 degrees total at 4000 RPM

Also Includes:

  • Valve covers, oil pan and timing cover, water pump, plugs, wires, distributor, water neck, thermostat, fuel pump and fuel line, harmonic balancer, air cleaner.
  • Also ships with complete, Installed, Serpentine 8 rib front pulley kit.
  • PS pump: Type II with -6AN pressure, -10AN Return, 1400 psi
  • Air Conditioning Compressor: 7B10 Peanut style

Notes:

  • If installing with a Manual Transmission with .750″ input shaft, Recommended Pilot bearing is PN FC-69907.
  • Recommended Pilot OD is 1.81″
