Sale!

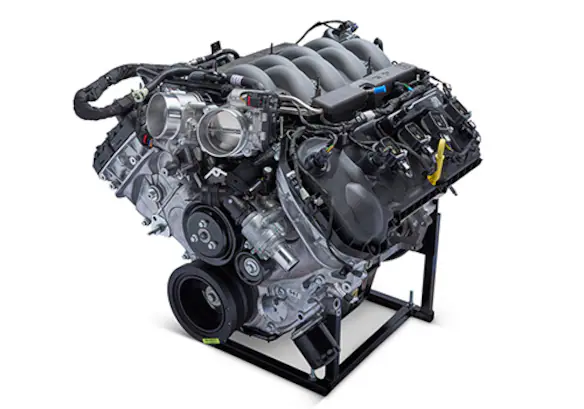

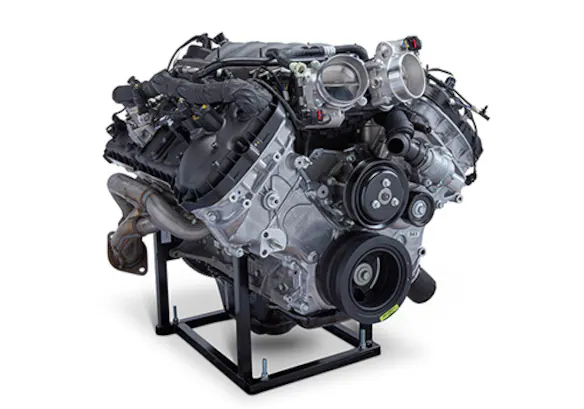

Ford Performance Gen 4 5.0L 480 HP Coyote Crate Engine IN STOCK!

Original price was: $10,849.95.Current price is: $10,649.95.

  • Gen4 5.0L Coyote engine
  • 480HP/415lb-ft
  • 12.0-1 compression
  • Flexplate included
  • Dual throttle body

Shipping is free, but we need to know if a liftgate is required for delivery.

SKU: FRDM-6007-M50DAUTO Categories: ,

Ford Performance Parts is pleased to announce the latest 5.0L Coyote all-aluminum crate engine from the 2024 Mustang GT.  This modern 5.0L 32-valve DOHC V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a heightened compression ratio to deliver 480 horsepower and 415 lb.-ft. of torque (with premium fuel).

The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.

  • 480 Horsepower @ 7,150 rpm
  • 415 lb.-ft. of Torque @ 4,900 rpm
  • 12.0:1 Compression ratio
  • Bore 93 mm x Stroke 92.7 mm
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on BOSS 302 Mustang
  • Forged steel crankshaft
  • Aluminum block which features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 9.5 qt capacity steel oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • Twin 80 mm single bore “drive by wire” electronic throttle bodies with variable runner control
  • High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing
  • Includes engine harness and dual mass flywheel. For engine equipped with automatic flex plate, see M-6007-M50DAUTO
  • Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
  • Mustang GT 409 stainless steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • Vehicle harness and PCM not included
  • Use Ford Performance M-6017-M50D Control Pack which includes wiring, PCM and installation kit, designed for project car installation
  • Does not include alternator
  • Engine weight: 453 lbs. without front accessory drive components
***Note: driver side exhaust flange utilizes 5.2L pattern***
Prop65WARNING: These auto parts can expose you to chemicals including phthalates and lead. Installing or using these parts can expose you to other parts containing these chemicals and to engine exhaust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
