LS To Fox Body Mustang Adapter Plates
Original price was: $88.99.$79.99Current price is: $79.99.
- Adapts LSX engine to 1996-2004 Ford Mustang 4.6 L motor mounts for installation in 1979-1993 Fox Body Mustang using the factory K member
- Requires a set of 1996-2004 Ford Mustang 4.6 L motor mounts (Ford #2R3Z6038AA & #2R3Z6038AB)
- Requires aftermarket transmission cross member
- Requires Cadillac CTSV LS oil pan
- Will not clear low-mount a/c compressors
Karl Performance Products engine mount adapter plates allow you to swap any LSX engine into a 1979-1993 Ford Mustang Fox Body. CNC-machined, they are precision-cut to provide a secure fit to the block and motor mount, and they have been designed to allow 1 1/2″ of adjustment for the desired engine placement.
| Brand | |
|---|---|
| Finish | Clear Anodized, Black Anodized |
| ENGINE MOUNT TYPE | 1996-2004 Ford Mustang 4.6 L |
| ADAPTER PLATE MATERIAL | Aluminum |
| MOUNTING POSITIONS | 1 |
| MOUNTING RANGE | 1 1/2″ |
| QUANTITY | 2 |

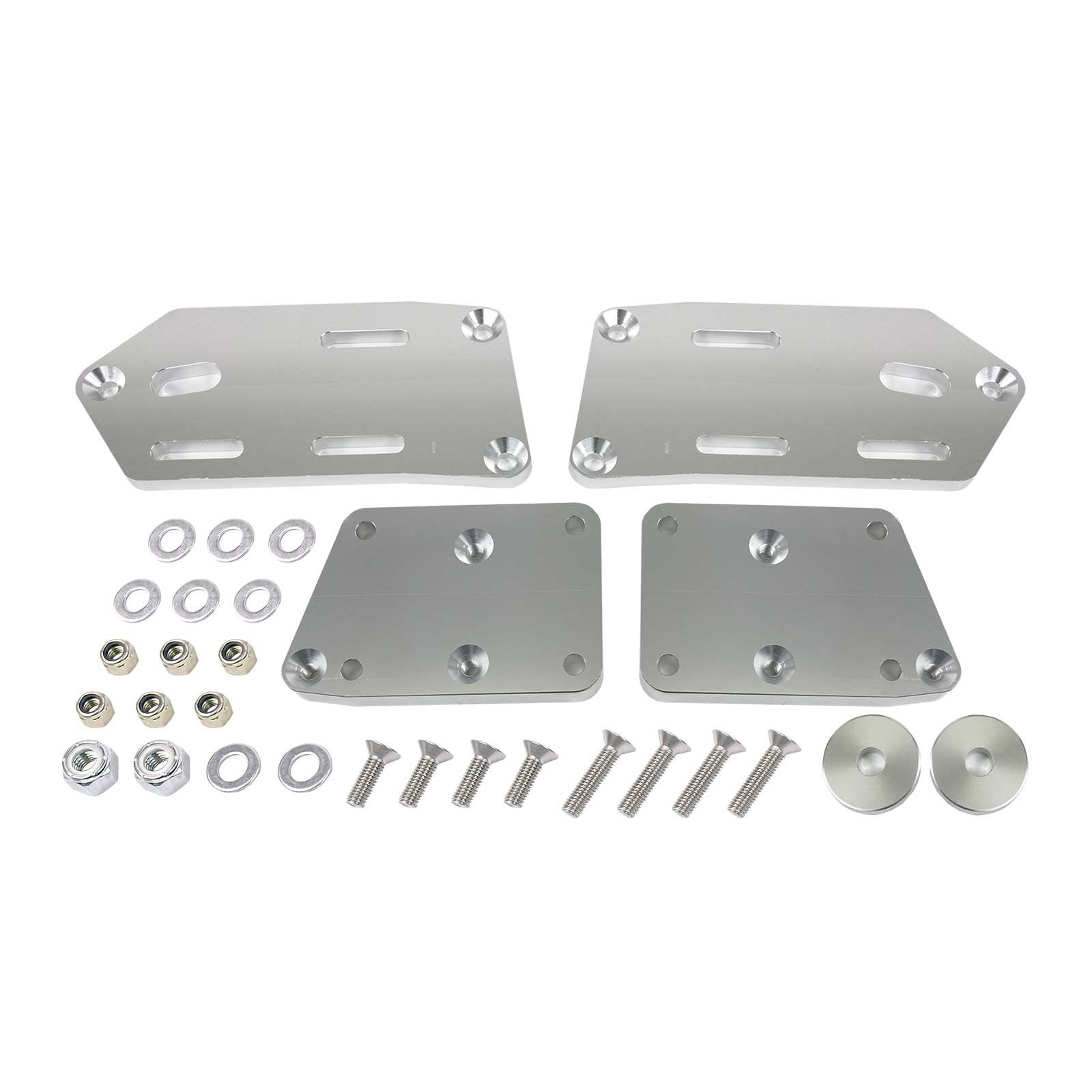

| INCLUDED | (2) LS Engine Plates (2) Ford 4.6 L Engine Plates (14) Short Screws (2) Long Screws (14) Small Washers (2) Large Bolts (2) Large Washers (2) Large Nuts |
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
- 4.8 L / 293 in3
- 5.3 L / 325 in3
- 5.7 L / 346 in3
- 6.0 L / 364 in3
- 6.2 L / 376 in3
- 7.0 L / 427 in3
All threaded holes in the block and cylinder head should cleaned and tapped with a thread chaser. All bolts being installed should be lubed with a light oil or anti-seize on the bolt threads before assembly.
Using the provided metric 10MM counter sunk bolts, install these to the drivers side block. If you have multiple mounting holes, LSX or Cadillac block, these mount to the front four holes. Lube bolts and torque to 28 ft lbs.
Next, mount your 1996-2004 4.6 Mustang drivers side engine mount to the outer plate. Use the provided Grade-8 zinc coated bolts that came installed in the top plate. The Grade-8 washer is placed on top of the mount. Torque all bolts to 28 ft lbs. These will fit the factory rubber or aftermarket urethane or solid engine mounts.
Align the slots in the top plate over the studs on the base plate. Place one Grade-8 washer and one Grade-8 nylock locking nut over each stud. You will have to slide the mount back and forth to get ample clearance to install these nuts. Finger tighten- do not torque.
There is a large billet spacer that is installed into the 4.6 engine mount stud before placing the mounts into the Factory Fox K-member slots.
Drop engine onto cross member and install nuts on the 4.6 mounts. When you have the engine placed into the desired position, tighten the three locking nuts on the top plates to 28 ft lbs.
