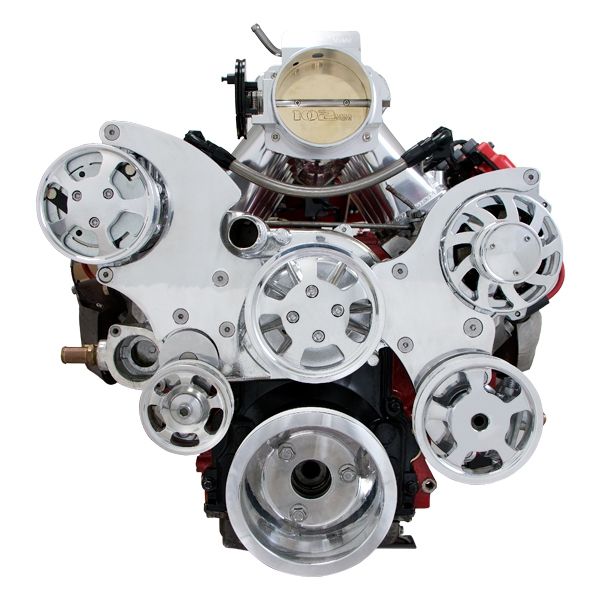

GM LS1/LS2 Serpentine Front Drive System

$1,649.95 – $1,999.99

  • Fits LS1, LS2, and LS3* engines
  • Includes all accessories, brackets, and hardware
  • Available in black or polished
SKU: KPP81200 Categories: ,

Overview

Our LS Serpentine Front Drive System is finally here. Designed for performance and style, it’s sure to turn heads. If you’re looking for a way to dress up your LS swap, look no further. And the best part: this kit comes with everything you need, including an integral power steering reservoir.

Specifications:

  • BRACKET & PULLEY MATERIAL: 6061-T6 Billet Aluminum
  • ALTERNATOR TYPE: CS130 Style
  • ALTERNATOR OUTPUT: 160 Amps
  • A/C COMPRESSOR TYPE: Sanden SD-7 Style
  • WATER PUMP: Customized OE Replacement
  • POWER STEERING PUMP TYPE: GM Type 2 (Saginaw TC Series)
  • POWER STEERING RESERVOIR: Integral Plastic
  • HARMONIC BALANCER TYPE: High Performance
  • HARMONIC BALANCER MATERIAL: Steel
  • BELT TENSIONER: Included
  • BELT TENSIONER STYLE: Custom Design
  • SPACERS & HARDWARE: Included
  • SERPENTINE BELT: 6-Rib, 67″ Length
  • GATES PART #: K060670
  • BELT INCLUDED: Yes
  • INCLUDED: Brackets & Pulleys, Water Pump, A/C Compressor, Alternator, Power Steering Pump, Harmonic Balancer, Belt Tensioner, Installation Hardware, Instruction Manual
TSP's serpentine kit comes with beautiful brackets and pulleys.

Brackets and Pulleys

Easily the biggest draw to this kit are the brackets and pulleys. CNC-machined from 6061-T6 aluminum, they are available in a striking matte black or gorgeous polished finish. Everything from screw to tensioner was designed to add function while maintaining a clean and eye-popping aesthetic. This is sure to make any LS1, LS2, or LS6 an immediate attention-grabber.

This kit also comes with a chrome water pump.

Water Pump

We’ve taken our high-quality OEM replacement LS1 water pump and customized it specifically for this kit. On top of the heavy duty impeller shaft and bearings, we’ve added a custom hub to make installation with this kit a breeze. Available in black or chrome.

Cooling provided by a chrome Sanden SD-7 A/C compressor.

A/C Compressor

Chrome Sanden SD-7 style A/C compressor provides high-performance cooling in a compact package. It pumps 6.1 cubic inches per revolution with a maximum 9,000 sustained RPM range.

Powered by a 160 amp alternator.

Alternator

Providing the electrical power in this kit is our 160-amp GM CS130 style alternator. It features an internal regulator, one-wire capability, a battery side post, and of course, a beautiful chrome or black finish. Presented in chrome and black.

Chrome GM Type II power steering pump.

Power Steering Pump

When it came time to address power steering with this kit, we looked only at the GM Type II (Saginaw TC Series) style pump. With it’s immense popularity among engine swaps and performance applications, it was a no-brainer. We’ve designed ours for performance and reliability, meeting or exceeding OEM specifications. Available in black or chrome, it comes with an integral reservoir.

High-performance steel harmonic balancer.

Harmonic Balancer Damper

Rounding out the kit is our harmonic balancer, which is 30% more efficient above 5,000 rpm and frees up horse power over stock dampers. The shell is CNC-machined and is designed to mount to the crank hub so the timing marks never change position. It features an inertia ring and hub and is rebuild-able and tunable by replacing the elastomer strips. As an added feature, with the exposed inertia weight marked at TDC, you can tell that the elastomer strips need replacing when the marks start to move. All-around, this harmonic balancer has been built to handle your high performance LS engine with ease.

Fitment: Chevrolet Small Block V8 Gen. III/IV (LS-Based)

  • 5.7 L / 346 in3 LS1
  • 5.7 L / 346 in3 LS6
  • 6.0 L / 364 in3 LS2
  • 6.2 L / 376 in3 LS3*

Fitment Notes

  • Installation on LS3 engines requires replacing water pump backing plate bolts with M6 x 1.00 x 15mm flathead screws
  • Will not fit VVT engines, as they are fitted with a larger timing cover
  • Will not work with hydroboost systems
  • Due to the relocation of certain accessories, may not fit in stock applications (See dimensions)

Resources (Part Numbers)

  • Black: KPP81200BKX
  • Polished: KPP81200X
Weight 65 lbs
Dimensions 29 × 15 × 14 in
Brand

Finish

Black, Polished
  • BRACKET & PULLEY MATERIAL: 6061-T6 Billet Aluminum
  • ALTERNATOR TYPE: CS130 Style
  • ALTERNATOR OUTPUT: 160 Amps
  • A/C COMPRESSOR TYPE: Sanden SD-7 Style
  • WATER PUMP: Customized OE Replacement
  • POWER STEERING PUMP TYPE: GM Type 2 (Saginaw TC Series)
  • HARMONIC BALANCER TYPE: High Performancee
  • HARMONIC BALANCER MATERIAL: Steel
  • BELT TENSIONER: Included
  • BELT TENSIONER STYLE: Custom Design
  • SPACERS & HARDWARE: Included
  • SERPENTINE BELT: 6-Rib, 67″ Length
  • GATES PART #: K060670
  • BELT INCLUDED: Yes
  • INCLUDED: Brackets & Pulleys, Water Pump, A/C Compressor, Alternator, Power Steering Pump, Harmonic Balancer, Belt Tensioner, Installation Hardware, Instruction Manual

Fitment: Chevrolet Small Block V8 Gen. III/IV (LS-Based)

  • 5.7 L / 346 in3 LS1
  • 5.7 L / 346 in3 LS6
  • 6.0 L / 364 in3 LS2
  • 6.2 L / 376 in3 LS3*
  • Installation on LS3 engines requires replacing water pump backing plate bolts with M6 x 1.00 x 15mm flathead screws
  • Will not fit VVT engines, as they are fitted with a larger timing cover
  • Will not work with hydroboost systems
  • Due to the relocation of certain accessories, may not fit in stock applications (See dimensions)
