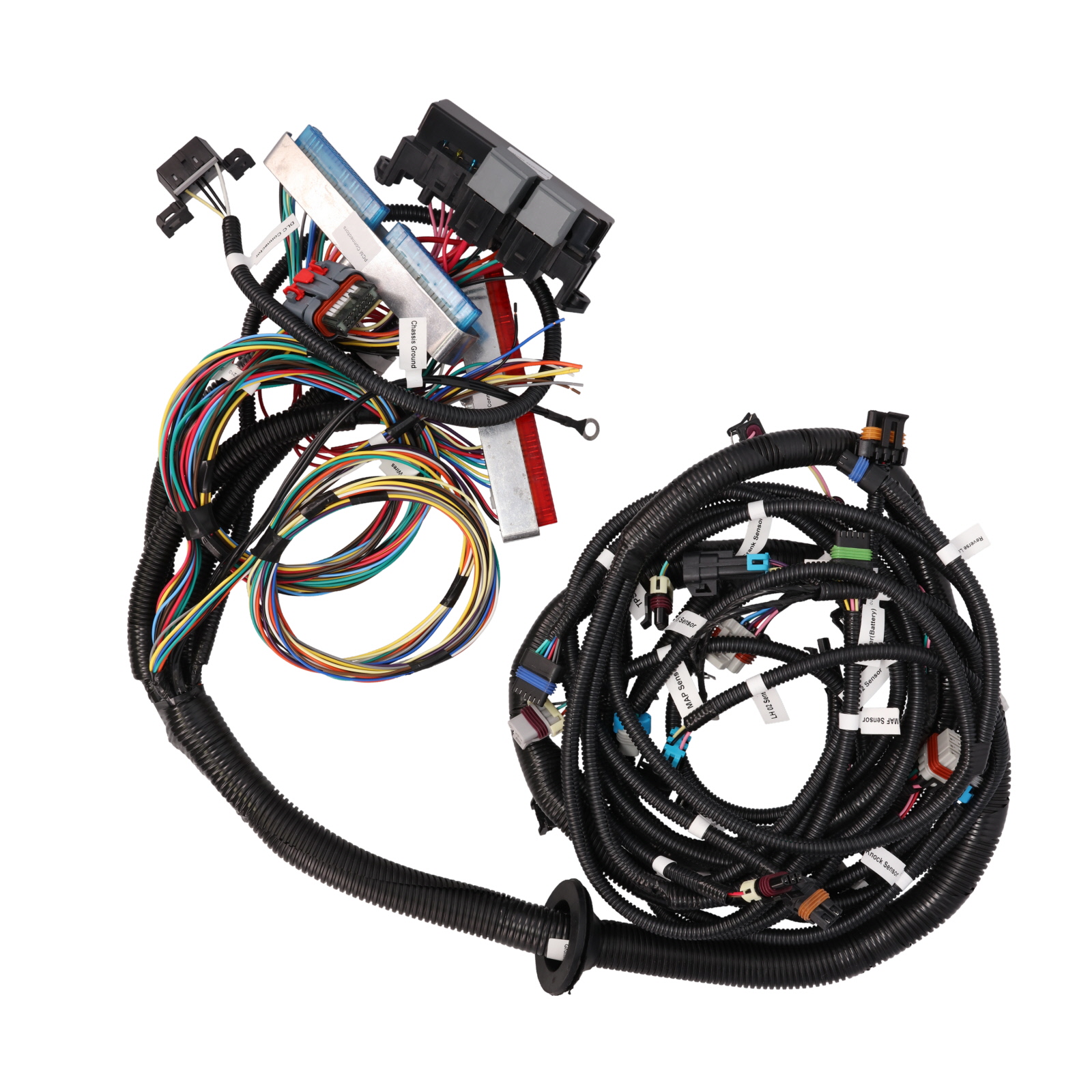

LS Swap DBW Standalone 97-04 LS1/LS6 Engine Wiring Harness For T56 and Non-Electric Automatic Transmissions

Original price was: $339.95.Current price is: $299.99.

An LS engine swap is a no-brainer when it comes to adding some affordable horsepower to a project car, but any swap comes with its share of headaches, including wiring. That’s where this stand alone engine and transmission wiring harness comes in.

  • Fits LS1/LS6 (5.7L) Corvettes, Camaros, and CTS-V’s
  • Fits drive-by-wire applications with LS1 intake manifolds and T56 manual or non-electronic automatic transmissions

PLEASE NOTE! Our harnesses are a standalone harness; meaning they will only control the engine and/or transmission, depending on your application. These will NOT communicate with body computers in a factory style application, nor are they intended to be a factory replacement part. The primary purpose and design is in an engine swap scenario, such as an LS swap into a hot rod or muscle car.

SKU: KPPWH1210 Categories: ,

LS Swap LS1/LS6 Wiring Harness

When it comes to engine swaps, here at Karl Kustoms, we know the LS is often the answer. The LS is great, but the wiring can often be a challenge. Getting old and new electrical systems work together is always a struggle. That’s why this standalone wiring harness is an excellent option for your LS build – it will save you headaches.

This LS1/LS6 System is intended for drive-by-wire applications with LS1 intake manifolds. If this harness isn’t correct for your application, check out our other wiring harness offerings here. Or, if you’d like to learn more about a recent custom build here in our shop, check out this post. This standalone wiring kit includes everything you need to help get your Gen III LS engine running.

Important Notes

This harness fits 97-04 Gen III LS applications and is intended for use with GM 12200411 (Commonly known as 0411) PCM’s, GM 12565643 accelerator pedal, GM 12578953 TAC Module, and 5 pin MAF. Other features:

  • Harness
  • For drive-by-wire throttle applications
  • EV1 injectors
  • Rear-mount camshaft position sensor
  • LS1 style MAP sensor (For LS3 style sensor, you will need our 81033 adapter.)
  • For T56 manual or non-electronic automatic transmissions
  • WH1210

When it comes to your build, you know Karl Kustoms has you covered. With over 20 years in business and our own in-house custom shop, we know what it takes to help you get your build done. We’re happy to offer free shipping on orders over $99 to the lower 48. You can contact us here or give us a call at 866-697-8615.
