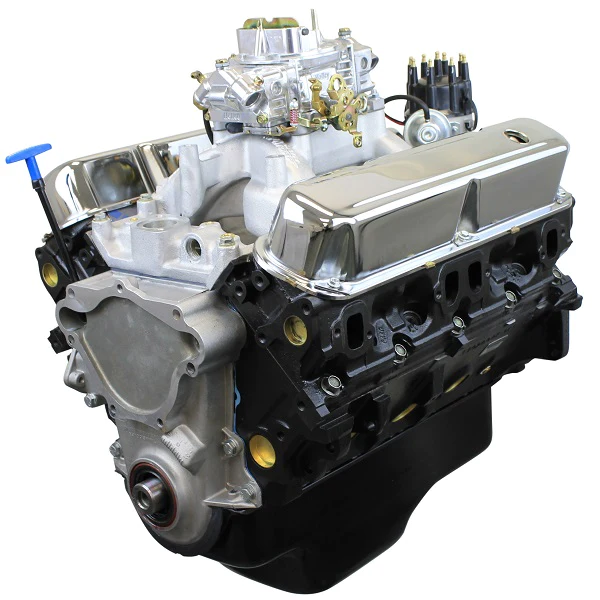

Mopar 408CI Stroker Crate Engine | Small Block Chrysler Style | Base Dressed Longblock with Carburetor | Iron Heads | Flat Tappet Cam
Original price was: $7,699.95.$7,299.00Current price is: $7,299.00.
DESCRIPTION
- HP & Torque: HP 375 / 460 FT LBS
- Compression Ratio: 9.8:1
- Cast Iron Heads
- Flat Tappet Cam
- Cast Steel Crank
- Forged Pistons
BLOCK:
- Hand picked seasoned Magnum block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- 2-Bolt Main
- 4.000″ Bored .040″ over
- 2-Piece Rear Main Seal
- Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
- New Cast steel crankshaft
- 4.000″ Stroke
- Forged Magnum 6.123″ connecting rods w/ 150,000 psi bolts
- Forged pistons
- External
CYLINDER HEADS:
- NEW Magnum cast iron heads
- Hardened retainers and springs
- 1.92″ swirl polished intake valves
- 1.625″ swirl polished exhaust valves
- Hardened push rods
CAM SPECS:
- Cam Type: Flat Tappet
- .474 Intake .474 Exhaust
- 233 Intake / 240 Exhaust duration
- @ .050 – 110 degree lobe separation
IGNITION TIMING:
- 34 degrees total at 3500 RPM
ALSO INCLUDES:
- Valve covers, oil pan and timing cover
- Dyno tested and shipped with results
WARRANTY:
- 30 month / 50,000 mile Blueprint Engines Warranty
NOTES:
- If installing with a Manual Transmission with .750″ input shaft, Recommended Pilot bearing is PN FC-69907.
- Recommended Pilot OD is 1.81″
