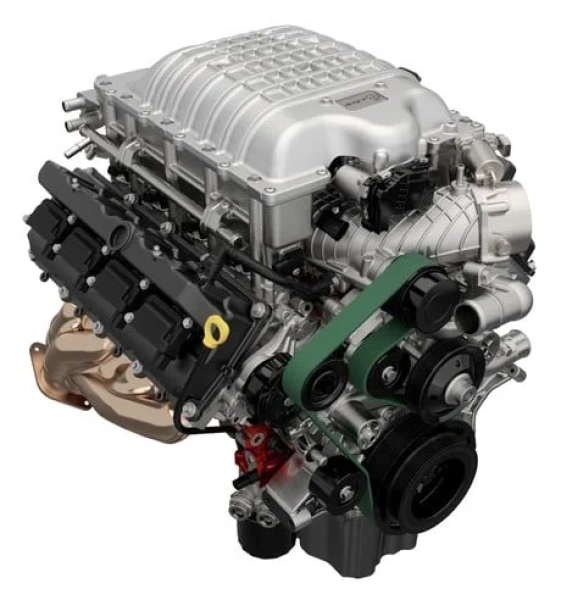

Mopar Hellcrate Redeye Supercharged Gen III Engine

Mopar Accessories 68303091-AA Hellcrate Redeye 6.2L Supercharged Gen III Hemi Engine Features:

• Power Ratings:
  • 807 Horsepower (HP)
  • 717 ft.-lbs. Torque (TQ)
  • 9.5:1 Compression Ratio
  • 6500 Peak RPM
• Cast Iron Engine Block:
  • 4-Bolt Powder-Metal Main Caps
  • 4.090 in. (103.9 mm) Bore
• Rotating Assembly:
  • Forged Alloy Crankshaft w/3.580 in. (90.9 mm) Stroke
  • Forged Powder-Metal Connecting Rods w/Diamond-Like Coated Wrist Pins
  • Forged High-Strength Alloy Pistons Provide 9.5:1 Compression
• Cylinder Heads:
  • 356 Aluminum w/HEMIspherical Combustion Chambers
  • 54.3 mm Hollow-Stem Intake Valves
  • 42 mm Sodium-Filled Exhaust Valves
• Complete Engine Assembly Includes:
  • Water Pump
  • Flywheel and Clutch
  • Front Sump Oil Pan
  • Intake Manifold
  • Throttle Body
  • Fuel Injectors
  • Coil Packs

Note: Premium Fuel is Recommended

Warranty: HEMI® crate engine kits are covered by a 3-Year/100,000-Mile Powertrain Limited (parts exchange only) Warranty. Crate Engine Controller kit must be purchased on the same invoice as the engine to qualify for the 3-Year/100,000Mile Parts Exchange Warranty. Failure to provide proof of the installation kit with the engine will void the 3Year/100,000-Mile Powertrain Warranty. Red Eye HEMI crate engines would then be covered against defects in materials and workmanship for a 90-day period (parts exchange only).

Emissions:

Crate HEMI Engines are Designed for Installation in:

• Any Motor Vehicle Manufactured Prior to the Model Year 1976
• Competition Vehicles Driven on Tracks or Off-Road.
• Customers are responsible for ensuring that their use of their vehicle equipped with this part complies with applicable federal, state/provincial, and local laws, regulations, and ordinances.
• Vehicles manufactured in 1976 and later equipped with this part and driven on public roads or highways may violate U.S., California, Canadian, or local motor vehicle emissions laws and regulations.
