MSD 7730 Red Power Grid System
Original price was: $673.00.$604.95Current price is: $604.95.
- The next evolution of the programmable 7-series ignition controls
- USB compatible
- Data files captured on a micro SD card
- CAN-Bus technology reduces the amount of wiring
The Power Grid Ignition System is the next evolution of our Programmable 7-Series Ignition Controls. The Grid incorporates an efficient 32 bit microcontroller and an all new software program, called MSD View, and is USB compatible. The Windows based software is designed with tabs to help racers easily select different programming windows and parameters. Also, the data acquisition files of the ignition are now captured on a micro SD card for ease of storage and reviewing.
The Power Grid Ignition incorporates CAN-Bus technology which reduces the amount of wiring and simplifies the addition of accessory modules. The CAN-Bus is a common harness that accessory controls are connected to and easily brought into the programming library of the View Software. With this technology, racers can connect the Power Grid system directly into their Racepak Data Recorder and other Racepak products.
The Power Grid Controller is the brains behind the entire system and can be used with any MSD Ignition or the Pro Mag to provide advance ignition tuning capabilities. While it is compatible with all MSD boxes, the new Power Grid System Controller has been specially designed to mount to the Power Grid-7 box. Also, this new Ignition packs higher output than the current programmable units!
The Power Grid Controller is supplied with the View Software, wiring harness, micro-SD card and mounting hardware. The ignition, available separately, is supplied with the harness and mounting hardware.
Features:
- USB connection for ease of programming
- Timing based on engine rpm and gear value
- Advanced individual cylinder timing based on gear or time
- Five retard stages for nitrous
- Four steps of rpm limits for burnout, spool, launch and overrev
- Output switch set on rpm, pressure or time
- Shift light settings for each gear
- Ignition data acquisition accepts multiple runs
- Crank Trigger system highly recommended
Color: Red
Note: To use any modules with the Power Grid Ignition System, PN 7720 and 7730, users MUST plug the modules into a 4-Connector CAN-Bus Hub PN 7740 to be attached to the Power Grid System Controller.
| Weight | 4.8 lbs |
|---|---|
| Dimensions | 11 × 3 × 8 in |
| GTIN | 85132077304 |
| Brand | |
| Emissions | Not CARB Compliant |
| Manufacturer Part Number | 7730 |

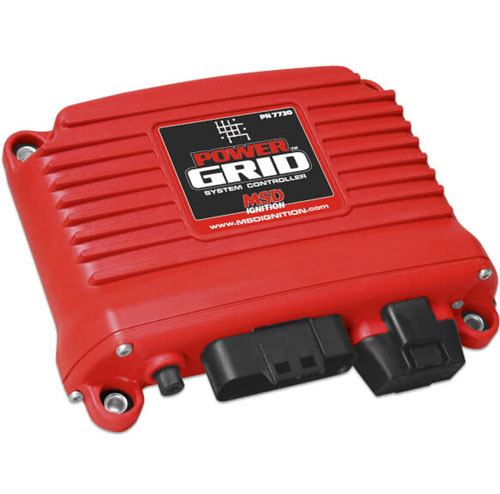

MSD Red Power Grid System
Controller Only
This is the “brain” of the Power Grid System – designed for use with PN 7720 ignition controller, but compatible with many of our other popular ignition boxes.
