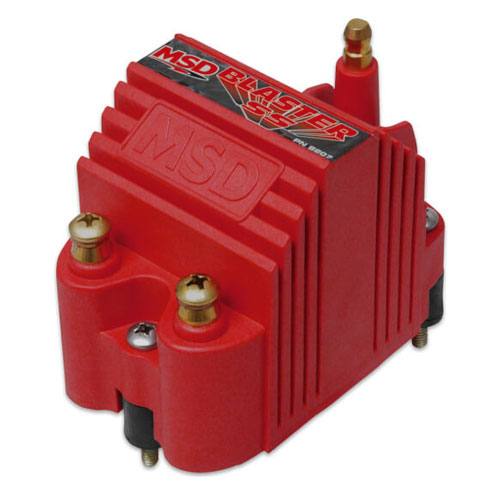

MSD 8207 Blaster SS Coil
Original price was: $91.06.$81.95Current price is: $81.95.
- Compact size packed with performance
- Efficient winding design
- Tough, rigid housing
- CARB E.O. D-40-37
Don’t let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and a maximum voltage output of 40,000 volts!
The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy housing. It is supplied with a 90° boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.
Features:
- Improved output coil for electronic ignitions, and MSD Ignition
- Efficient winding design and assembly creates a compact housing
- Primary and secondary windings are encased in Ciba polyurethane
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Tough, rigid housing with a tall tower and brass primary terminals
- CARB E.O. D-40-37
Specs:
- Inductance 6.9mH
- Maximum volts 40,000
| Weight | 1.35 lbs |
|---|---|
| Dimensions | 6 × 4 × 10 in |
| CARB | D-40-37 |
| GTIN | 85132082070 |
| Brand | |
| Manufacturer Part Number | 8207 |
MSD Blaster SS Coil
Compact and powerful, the advanced design of the Blaster SS coil is a great addition to any MSD 6-Series Ignition.
Efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output.
