Quick Fuel Tech Billet Bypass Regulator W/JET
$212.95
- Designed to operate within 4.5 – 9 PSI; Preset at 7 PSI
- .350″ (7/20″) restriction
- Designed for use with alcohol fuel
- Compatible with QFT billet fuel pressure regulator logs

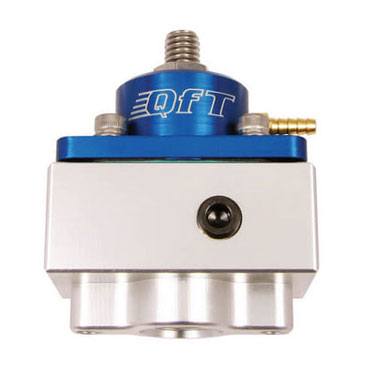

Billet Bypass Regulator W/JET – Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure. Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
Designed to operate within 4.5 – 9 PSI; Preset at 7 PSI
.350″ (7/20″) restriction
Designed for use with alcohol fuel
Compatible with QFT billet fuel pressure regulator logs
Includes an 1/8″ NPT port for manifold reference Boost Reference 1-1
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 4 × 3.5 × 4.75 in |
| GTIN | 849804006890 |
| Brand | |
| Manufacturer Part Number | 30-1899QFT |
Billet Bypass Regulator W/JET – Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure. Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
