Sale!

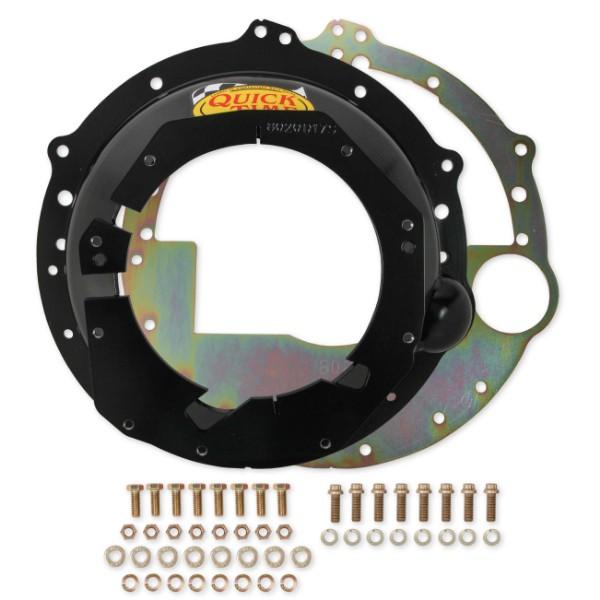

Quick Time RM-8020 Bellhousing LS1/LT1 Engine to LS1 T56 Transmission

Original price was: $1,026.00.Current price is: $922.95.

  • Bellhousing Depth 5.555 In
  • Weight 20lbs
  • S.F.I. 6.1 Certified
  • Made In The USA
SKU: QTMRM-8020 Category:

The Quick Time RM-8020 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 – Current) engines to T-56 Chevy LS, and T56 Magnum transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

  • Designed For Use With Hydraulic Throw Out Bearing
  • Fits Up to A 168 Tooth Flywheel And 11 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
Weight 31.1 lbs
Dimensions 19 × 8 × 19 in
GTIN

084041030011
Brand

Manufacturer Part Number

RM-8020

Chevy LS and Late Model LT to LS T-56 Transmission – Bellhousing
