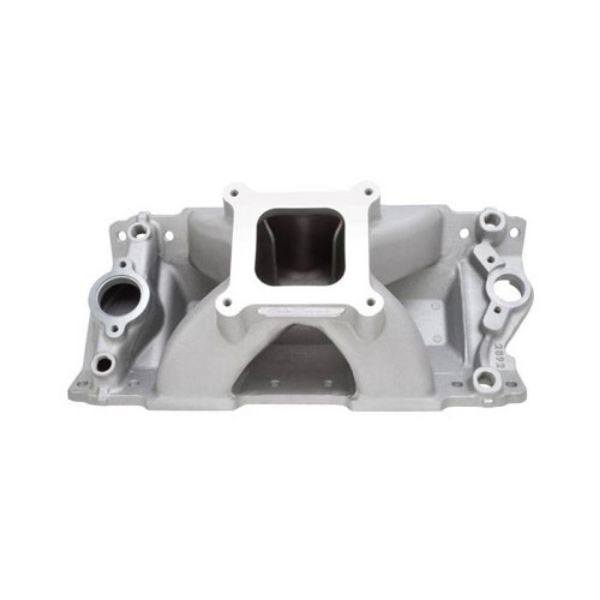

Edelbrock 2892 Super Victor II Single Plane Intake Manifold 62-86 SBC 327 350 400
Original price was: $758.69.$606.95Current price is: $606.95.
- Standard Deck Small Block Chevy
- 4150 Style Square Bore Carb Flange
- Standard Intake Port Size & Location
- Approximately 4000-8000 RPM Range
- Port Exit Dimensions: 1.18” w x 2.08” h
- Bolt hole centerline to port roof: 0.940”
- Bolt hole centerline to port floor: 1.160”
- Carburetor Pad Height: 6.75” from end rails
- Carburetor Pad Angle: 0° from flange
- Recommended Intake Gasket: FelPro HP 1206
| Weight | 21.6 lbs |
|---|---|
| Dimensions | 24.2 × 12.5 × 14 in |
| GTIN | 085347028924 |
| Brand | |
| Manufacturer Part Number | 2892 |
This small-block Chevy manifold is designed to work with modern high flowing 23ﾰ heads on large cubic inch applications. The runner area at the plenum is 25% larger than our Super Victor #2925, and the port exits are sized for use with a Fel-Pro #1206 intake gasket. Modern casting techniques create smooth, thin and extended divider walls for “out-of-the-box” performance. Just port match (up to #1207 – 1.38″ x 2.28″) and go. This intake is machined for 4150 style carburetors.
