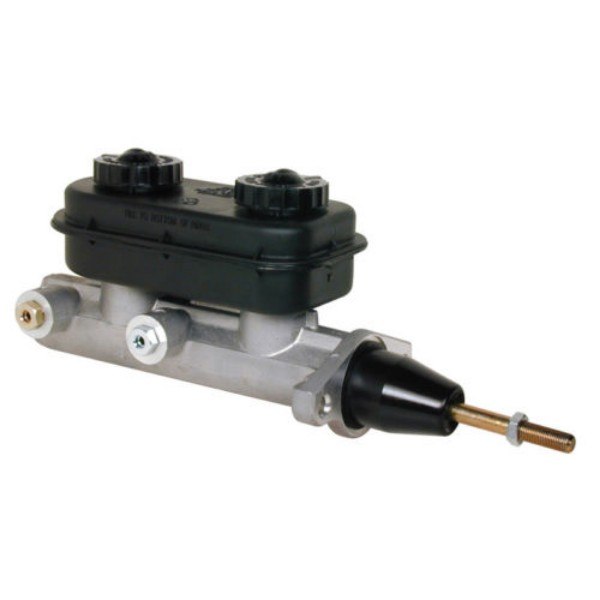

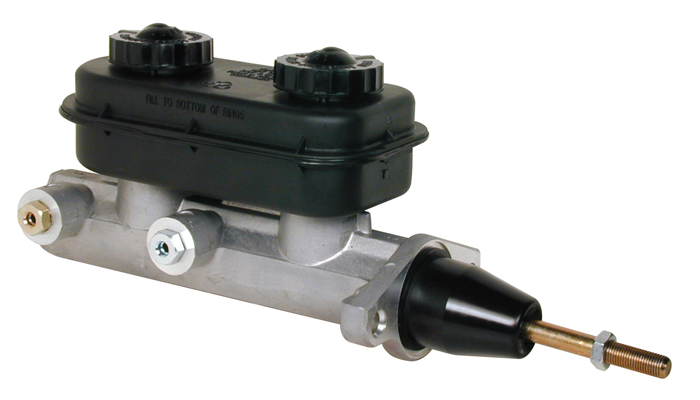

Wilwood 260-4894 Tandem Master Cylinder Direct Reservoir 1.0625″ Bore
Original price was: $173.77.$147.78Current price is: $147.78.
- Master Cylinder Bore: 1.0625″
- Quantity: Sold Individually
- Stroke: 1.350″
- Material: Cast Aluminum
Wilwood Tandem Master Cylinder Kit
Made from durable lightweight aluminum with a large capacity plastic reservoir and dual outlet bores, this master cylinder utilizes standard O.E.M. internal components. Standard factory mounting bolt holes can be adapted to racing pedal assemblies with an optional mounting adapter bracket (including push rod and dust boot, see diagram below). This lightweight (2.5 pounds) reliable master cylinder is used for Drag Racing, Late Model Stock Cars, Street Rod and Off Road applications.
| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 1-1/16″ |
| Area (in?) | 0.880 |
| Stroke | 1.35 |
| Volume (cu in) | |
| Master Cylinder Description | |
| Type | Tandem Outlet |
| Outlets | 2 |
| Material | Aluminum / Plastic |
| Finish | Anodize |
| Additional Dimensions | |
|---|---|
| Overall Length(in) | 12.42″ |
| Flange to End Length (in) | 8.14″ |
| Inlet Size (in) | |
| Inlet Fit (in) | |
| Outlet Size 1 (in) | 1/2-20 IF |
| Outlet Fit 1 (in) | 1/2-20 to 3/16 Tube Nut |
| Outlet Size 2 (in) | 9/16-20 IF |
| Outlet Fit 2 (in) | 9/16-20 to 3/16 Tube Nut |
| Brand | |
|---|---|
| Manufacturer Part Number | 260-4894 |
Primary outlet port 1/2-20 inverted flare. Secondary outlet port 9/16-20 inverted flare.
