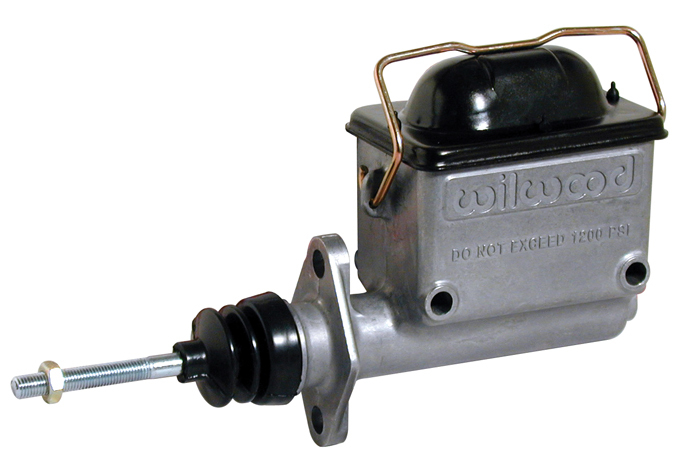

Wilwood 260-6765 High-Volume Brake or Clutch Master Cylinder 7/8″ Bore
Original price was: $81.77.$69.63Current price is: $69.63.
- Master Cylinder Bore: .875″
- Quantity: Sold Individually
- Stroke: 1.430″
- Material: Cast Aluminum
Wilwood High Volume Master Cylinder
Wilwood High-Volume Aluminum Master features high pressure die-cast bodies from high-grade aluminum and have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. . With 1-7/16″ of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 7/8″ |
| Area (in?) | 0.600 |
| Stroke | 1.43 |
| Volume (cu in) | 0.85 |
| Master Cylinder Description | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Steel |
| Finish | Bare |
| Reservoir | |
| Res Type | Integral |
| Res Size (oz) | 8.2 |
| Res Size(cu in) | 14.80 |
| Additional Dimensions | |
|---|---|
| Overall Length(in) | 9.15″ |
| Flange to End Length (in) | 4.87″ |
| Inlet Size (in) | |
| Inlet Fit (in) | |
| Outlet Size 1 (in) | 1/8-27 NPT |
| Brand | |
|---|---|
| Manufacturer Part Number | 260-6765 |
Wilwood High Volume Master Cylinder, 7/8″ Bore
Brake or Clutch
