Wilwood GM D52 Calipers 120-10937-RD

Original price was: $209.95.Current price is: $195.38.

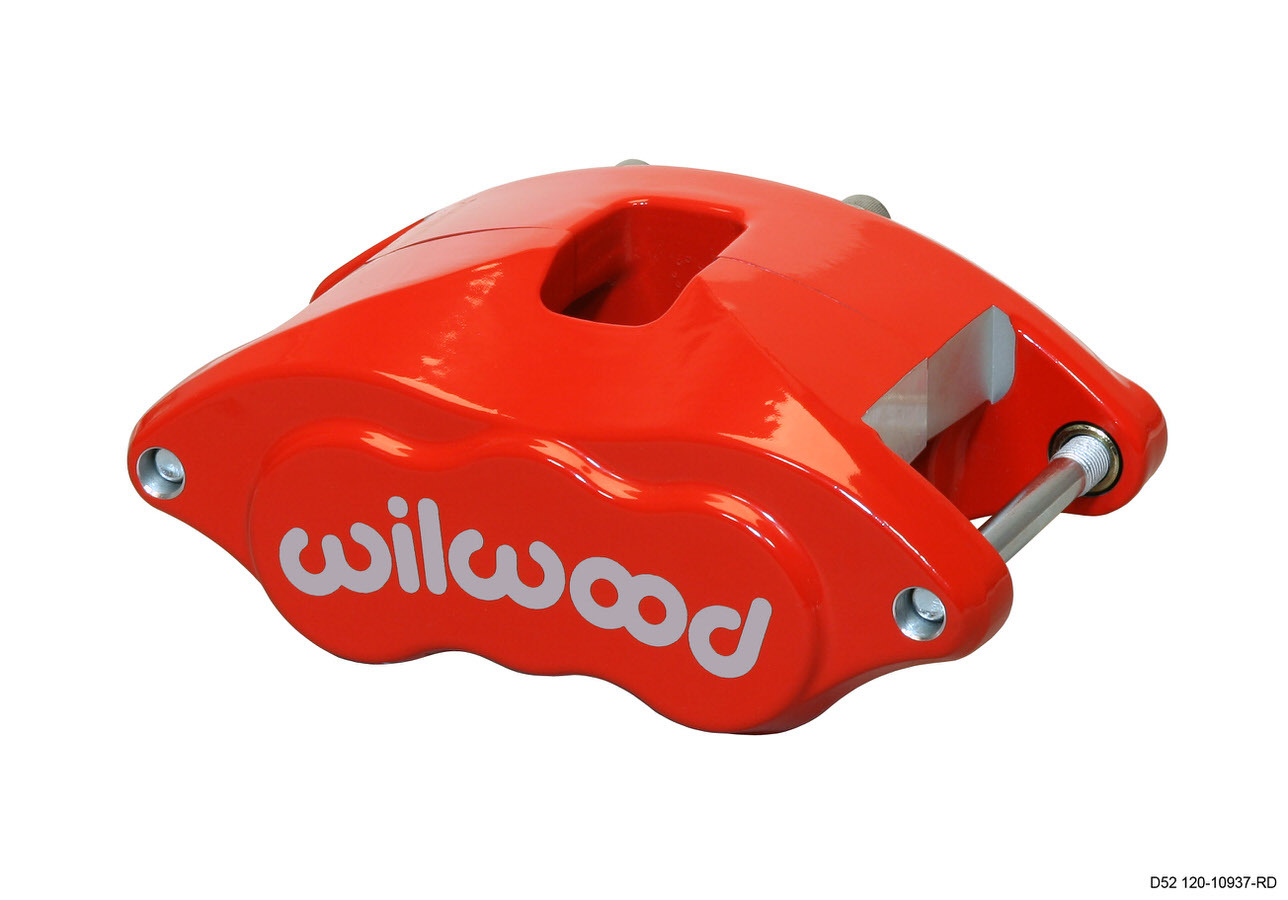

Wilwood GM D52 Calipers

Brake Caliper, GM D52, Aluminum, Red Powdercoated, 2 in. 2-Piston, Front, Rear, Each

SKU: WIL120-10937-RD Categories: ,

WILWOOD 120-10937-RD D52 Dual Piston Floater Caliper 1968-96 GM

The D52 caliper is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put and end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track.

D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line. Calipers can be used with most wheels that clear the OE calipers. The rear calipers with 1.25? piston provide 2.46 cubic inches of piston area per caliper, to maintain the original front to rear brake bias and use of the OE master cylinder. D52 Calipers come hardened slide pins.

Pistons
Piston Count 2
Piston Area (in?) 6.28
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width (in) 1.04
Rotor Diameter(in) 12.19
Pad Dimensions
Pad Area (in?) 10
Pad Volume (in?) 3.9
Duty Rating & Material
Material Aluminum
Weight(Lbs) 5.5
Colors & Finish
Color Red
Finish Red Powder Coat
Brand

Manufacturer Part Number

120-10937-RD

Overview

Brand:
Wilwood Disc Brakes
Manufacturer’s Part Number:
120-10937-RD
Part Type:
Brake Calipers
Product Line:
Wilwood GM D52 Calipers
Karl Kustoms Part Number:
WIL120-10937-RD
UPC:
889545001082
Caliper Series:
D52 Dual Piston
Caliper Piston Quantity:
Two
Piston Diameter (in.):
2.000
Rotor Thickness (in.):
1.040 in.
Caliper Material:
Aluminum
Caliper Color:
Red
Caliper Logo:
Wilwood
Parking Brake Provision:
No
Fittings Included:
No
Brake Pads Included:
No
Brackets Included:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Fits GM vehicles from 1968-96 that have factory D52 single piston calipers. The caliper inlet port is threaded for use with a 7/16-20 banjo bolt or a line adapter using crush washers as a seal. The OE rubber lines can be used from any vehicle equipped with a 7/16-20 banjo. For later model vehicles that were originally equipped with metric connections, a new line kit will be required.
