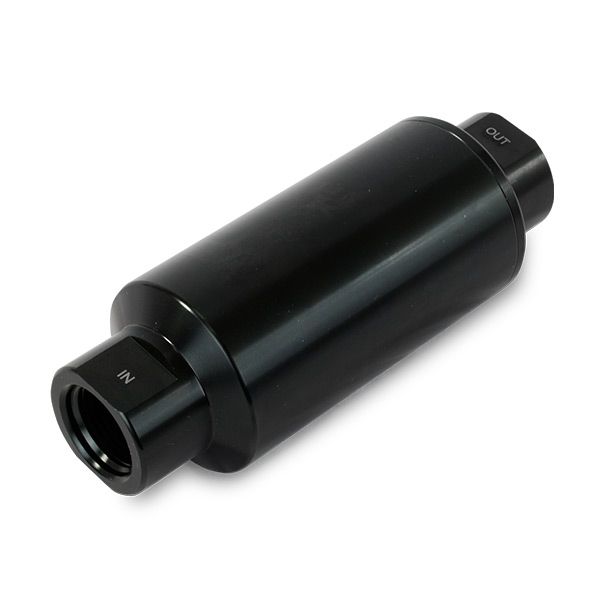

10 Micron Paper Fuel Filter Black Billet Aluminum Housing -10AN ORB 250PSI
$32.99
- 50mm diameter works great with combo bracket (JM1020)

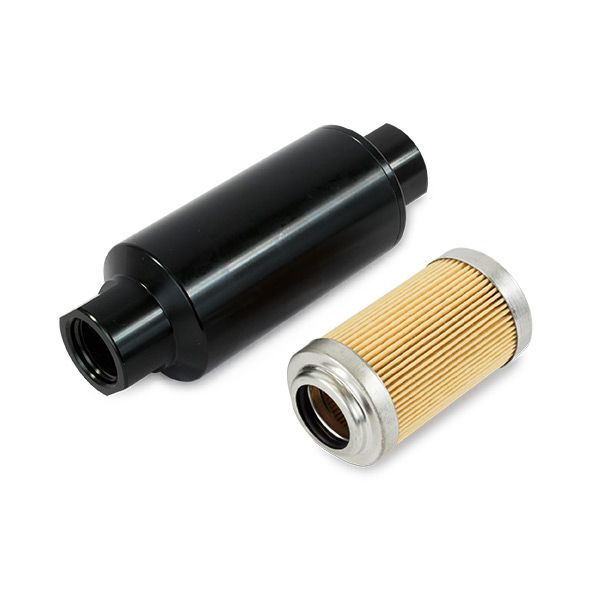

- Includes a 10 micron paper element
- Available in black and red
Precision-machined from 6061-T6 billet aluminum, our inline fuel filters offer simple, reliable filtration and versatility. They are designed for maximum flow, with almost no pressure drop, and can be used in fuel injected or carbureted engines with low or high horsepower.
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 5 × 3 in |
| Brand |
| FILTER TYPE | Inline |
| LOCATION | Pre-Pump |
| INLET SIZE | -10 AN O-Ring |
| INLET ATTACHMENT | Female |
| OUTLET SIZE | -10 AN O-Ring |
| OUTLET ATTACHMENT | Female |
| SMALLEST PARTICLE FILTERED | 10 Microns |
| MAXIMUM FUEL PRESSURE | 250 PSI |
| ELEMENT MATERIAL | Paper |
| HOUSING MATERIAL | Aluminum |
| HOUSING LENGTH | 5.5″ (140mm) |
| HOUSING DIAMETER | 2″ (50mm) |
| CLAMPS | Not Included |
| MOUNT | Not Included |
| FITTINGS | Not Included |
